Video Conferencing Camera | Video Conferencing Equipment Price – India

Video Conferencing Solutions

Partner with Infralab’s Video Conferencing Solutions for seamless interaction and collaboration. Our plug and play conferencing equipment - Conferencing Camera Model INVC10 & Omnidirectional Microphone Model INOM3 ensure instant virtual content sharing and recording. Our forte is to install High Definition PTZ Video Conference Camera, Omnidirectional Conference Microphones and Video Conferencing Software. Depending upon client’s requirement, we also integrate the equipment with third party cloud software like Google Hangout, Microsoft Skype, etc. We make virtual studios which are perfectly audible, crystal clear visible and absolutely real-time. Irrespective of the room size – smallest to biggest, we have solutions to meet your requirement as well as budget precisely.



Key Features:

  • Crystal Clear Video Quality , Absolute Color Contrast, Optimized Light Balance
  • Studio Quality Audio, Auto Noise Cancellation, Sensitive Microphones , Highly Audible
  • Compact & Easy to use, Sleek Industrial Design, Ergonomically Designed Promising Good Aesthetics
  • Smooth Cabling, Organized Hubs, Clever Wiring Strategy
  • Picture Perfect Frame, Automated Face Recognition, Enhanced User Experience
  • PAN, TILT & ZOOM Camera, Captures Movement & Adapt Automatically, Ideal Framing with Quick Zoom-in Features

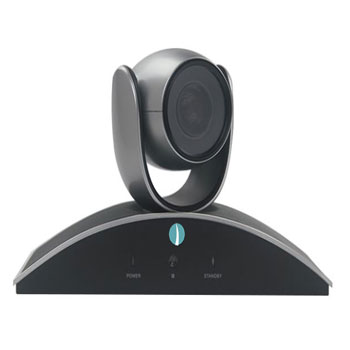

Reel the Real with Infralab’s Model INVC10

  • USB2.0 HD Interface
  • HD 1080P
  • 2.1 Mega Pixels
  • 10X Zoom
  • Pan:0~360°
  • Tilt:+/-60° RS-232,RS-422,RS-485
  • IR Remote Control
Product Model INVC10
Image Sensor Sensor 1/3″ HD color CMOS
Effective pixels 2.1 mega pixels
Minimum Illumination 0.5Lux at F2.0
White Balance Auto/Manual
Gain Control Auto
Backlight Compensation On/Off
Lens S/N Ratio >50db
Focal length f=4.9-49mm
Aperture Auto/Manual
Zoom 10X zoom
Horizontal angle of view 48.4°
Video Output USB2.0
Signal System 1080P()720P(1280x720)VGA(640x480) CIF(352x288)
Control Terminal USB,RS232C,RS485(Bidirectional)
Control Protocol VISCA, PELCO-D
Baud Rate 9600/38400bps
Cruise Line 4 Lines
Pre-set Position 64
Image Flip Support Horizontal/Vertical image flip
Pan Movement Speed 1-280°/S
Tilt Movement Speed 1-100°/S
Pan Movement Range 360°
Tilt Movement Range Up: 90°, Down: 45°
Pan Scanning Automatically support
Boundary Scan 0-359°
Remote Control IR  Wireless remote control P/T
Power Supply DC12V±10%,1.2A
Work Temperature 0-50℃
Work Humidity 0-95% RH
Dimension(LXWXH) 240 x 95 x 145mm/330 x 285 x 130mm (before/after packing)
Weight: 740g/1.8kg (before/after packing)
Accessories DC 12V power adapter, IR remote control, manual, RS-232C serial control line, USB2.0 cable (5 meters), Brackets & screws.
Color Silver Grey

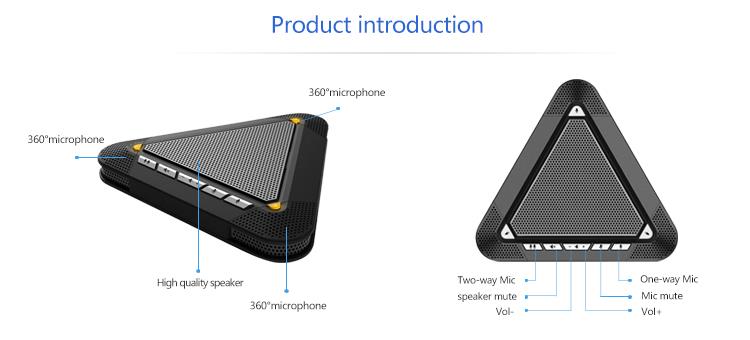

Infralab’s Omnidirectional Microphone Model – INOM3

  • 4M radios
  • 85 dB speaker
  • 3 alternate mic
  • Adaptive echo cancellation
  • Adaptive human voice tracking
  • Bluetooth to mobile phone and PAD.USB interface –PC

Interface USB2.0 Full speed interface
Max. POWER About 3W
Power supply USB power supply(5V/500mA)
Radio interference VCCI level B
Audio Parameters
Microphone 3 (one way microphone)
Speaker 1 (mono cycle)
Volume Max 85dB (0.5m)
Frequency bandwidth 300~20,000Hz
Signal processing Adaptive echo canceller, noise reduction. The 3 alternative mic can be corresponding to the switching control
Operating environment Temperature: 0 ~ 40 degrees C working humidity: 20 ~ 85% (no frost)
Size 140(W)x 32(H)x 140(D)mm , 243(W)x45(H)x 170(D)mm (before and after packaging)
Weight 280g/500g (before and after packaging)
Computer environment Windows 10 (64bit/32bit), Windows (8.1 * 64bit/32bit), Windows 8 (64bit/32bit), Windows 7 (64bit/32bit), Windows Vista SP1 (32bit), Windows XP SP2 (32bit), Windows 2000 SP4, Mac OS X 10.5 (only equipped with Intel processor machine)
Accessories USB cable (2.0m), Manual, Quality Certificate ,Portable bag
Others firmware update(using PC to import through the USB line)

Being the leading developers of Virtual Classrooms in India, we welcome you to experience our advanced video conferencing solutions. To learn more, drop an email at info@smartclassroomindia.com
